Dvi to HDMI Adapter Male 24+1 to Female

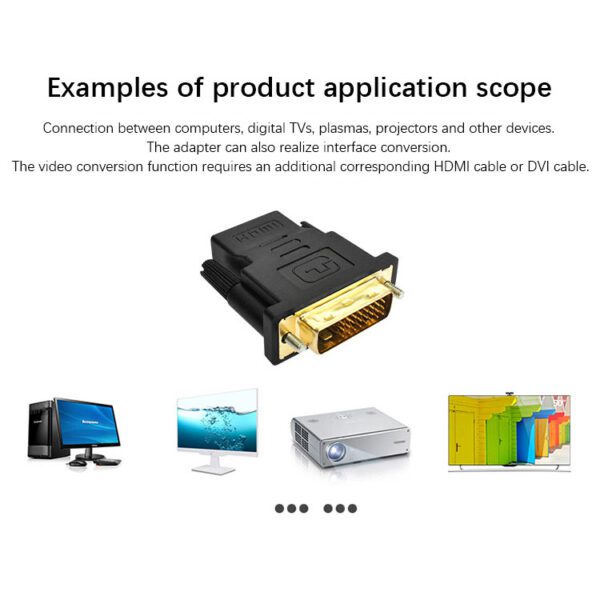

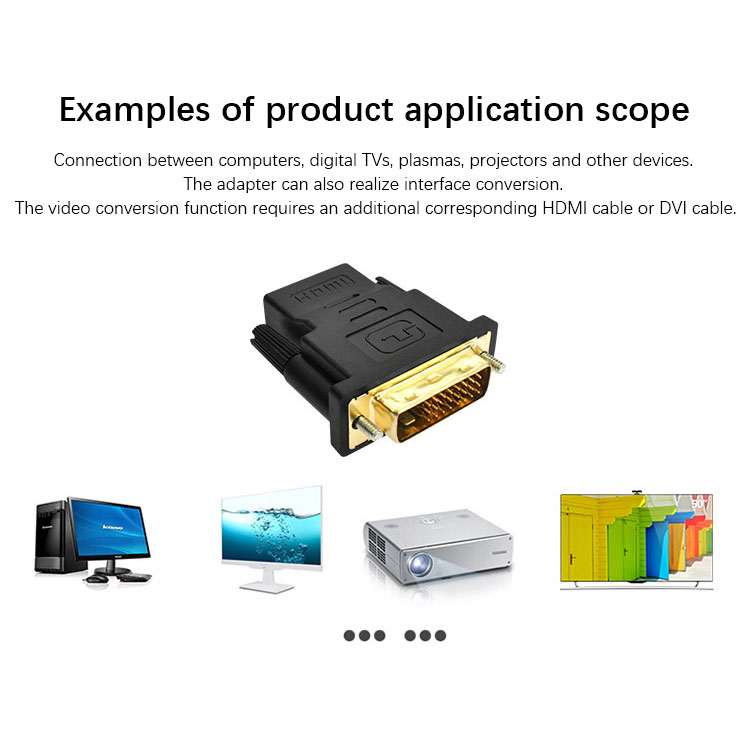

The bi-directional HDMI-DVI adapter is a great solution for connecting from a computer with DVI port to a monitor, HDTV, or projector with HDMI port, or from a computer, Blu-ray player, TV box, or game console with HDMI port to a monitor with DVI port. An HDMI cable (sold separately) is required
Convenient 2-pack DVI to HDMI adapters for use at home and carry on the road for office monitor or projector connections
The DVI to HDMI adapter supports video resolutions up to 1920×1200 and 1080p (Full HD). Audio must be transmitted separately

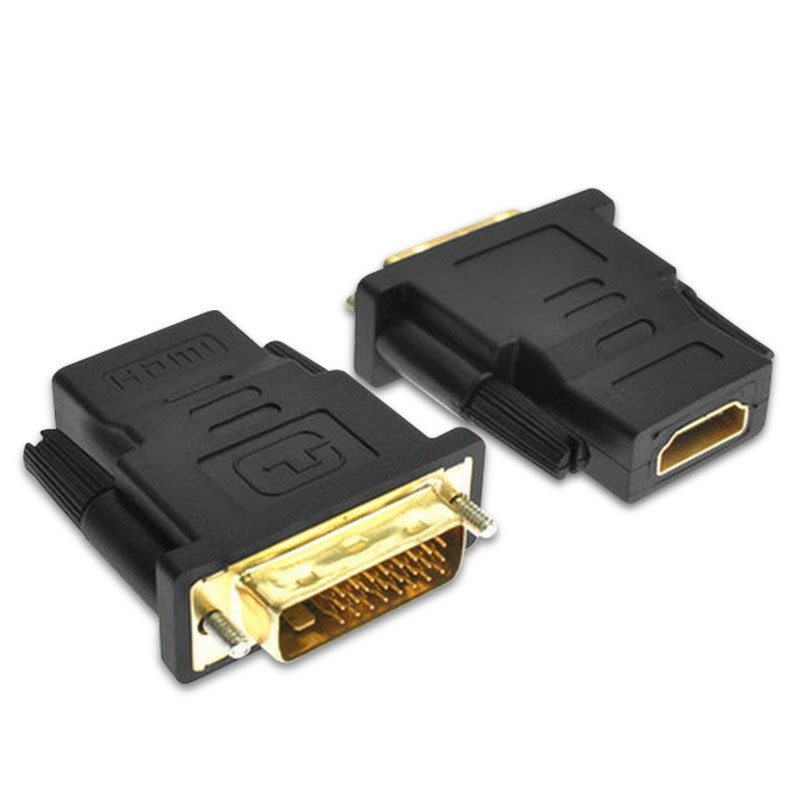

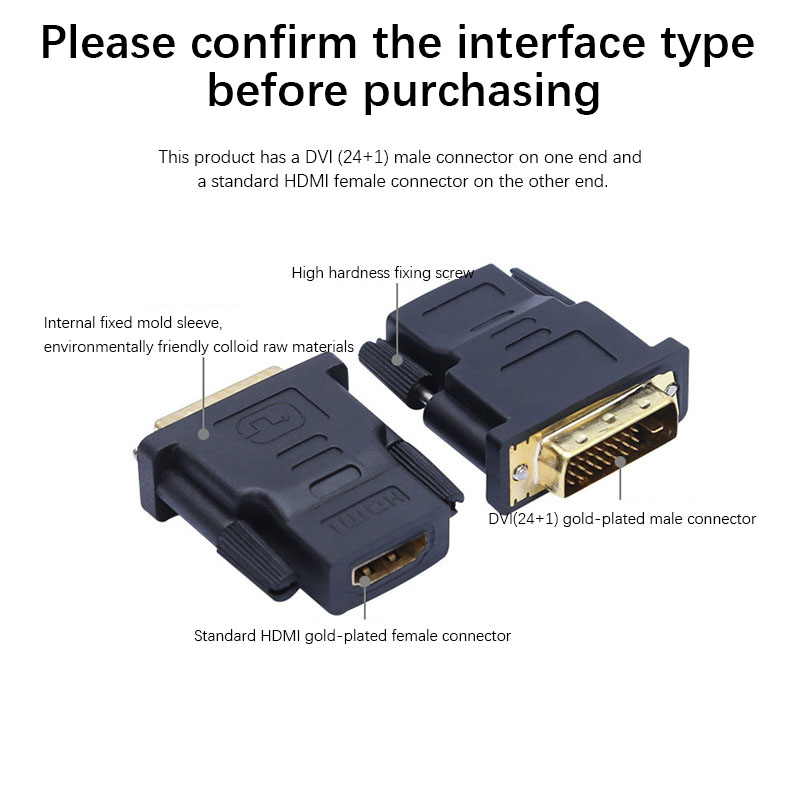

Sturdy DVI-D to HDMI adapter with gold-plated connectors resists corrosion and increases durability
DVI-D to HDMI adapter with grip treads helps plugging and unplugging ; hand-tightened screws provide a secure connection

Introduction

Digital Video Interface (DVI) and High-Definition Multimedia Interface (HDMI) are two widely used standards for transmitting video signals. The DVI to HDMI adapter, particularly the 24+1 pin configuration, is a crucial tool for connecting DVI-equipped devices to HDMI displays.

Understanding DVI and HDMI

DVI (Digital Video Interface)

Types: DVI-D (Digital), DVI-A (Analog), and DVI-I (Integrated, both digital and analog).
Connectors: DVI-D Single Link (18+1 pins), DVI-D Dual Link (24+1 pins), DVI-I Single Link (23 pins), and DVI-I Dual Link (29 pins).
Resolution: Supports resolutions up to 2560×1600 for dual-link DVI.

HDMI (High-Definition Multimedia Interface)

Versions: HDMI 1.0 to HDMI 2.1.
Connectors: Type A (Standard), Type C (Mini), and Type D (Micro).
Features: Supports both video and audio signals, with advanced features like Ethernet channel, ARC (Audio Return Channel), and CEC (Consumer Electronics Control).

DVI to HDMI Adapter: Technical Specifications

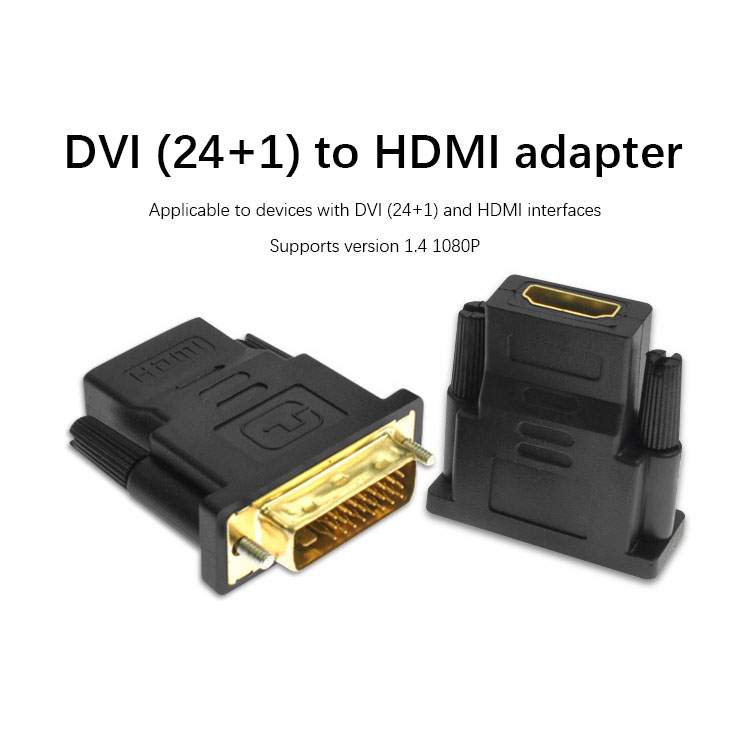

24+1 Pin Configuration

DVI-D Dual Link: The 24+1 pin configuration refers to DVI-D dual-link, which supports higher resolutions and bandwidth compared to single-link.
Compatibility: The adapter allows seamless connection between DVI-D-equipped devices and HDMI displays, ensuring compatibility with various devices like monitors, projectors, and TVs.

Key Features

Signal Conversion: Converts digital video signals from DVI to HDMI without any loss of quality.
Plug and Play: Easy to use with no need for additional drivers or software.
Durability: High-quality connectors and materials ensure long-lasting performance.

Applications and Use Cases

Home Entertainment Systems

Connecting PCs to HDTVs: Enables users to connect computers with DVI output to HDMI-equipped HDTVs, enhancing the multimedia experience.
Gaming Consoles: Useful for connecting older gaming consoles with DVI output to modern HDMI displays.

Professional and Educational Settings

Projectors: Facilitates the connection of laptops and desktops to projectors in classrooms and conference rooms.
Monitors: Allows the use of HDMI monitors with DVI-equipped graphics cards.

Challenges and Limitations

Audio Transmission

Lack of Audio Support: DVI does not carry audio signals, so a separate audio connection is required when using a DVI to HDMI adapter.
Workarounds: Users may need to use additional audio cables or adapters to transmit audio signals.

Cable Length and Signal Degradation

Signal Integrity: Over long distances, signal degradation can occur, affecting image quality.
Solutions: Using high-quality cables and shorter lengths can mitigate this issue.
