HDMI to HDMI Adapter

Introduction

Overview of HDMI Technology

HDMI Standards and Versions

HDMI Adapters

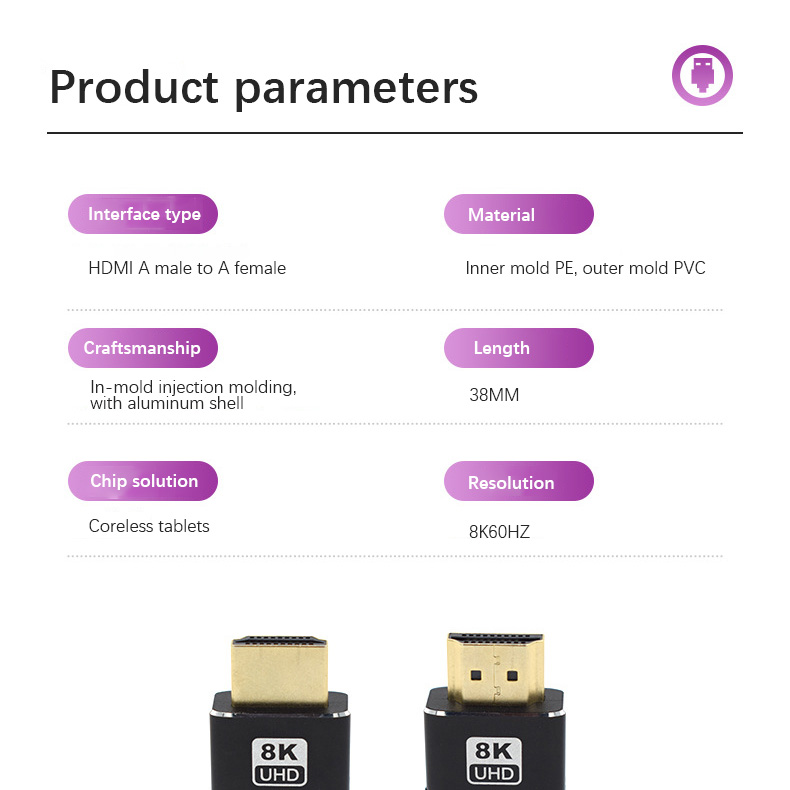

Technical Specifications

Bandwidth and Data Rates

• HDMI 1.4: Supports a maximum bandwidth of 10.2 Gbps, allowing for 4K resolution at 30Hz.
• HDMI 2.0: Offers a maximum bandwidth of 18 Gbps, supporting 4K resolution at 60Hz.
• HDMI 2.1: Provides a maximum bandwidth of 48 Gbps, enabling 8K resolution at 60Hz and 4K resolution at 120Hz.

Resolution and Refresh Rates

• HDMI 1.4: Supports up to 4K resolution at 30Hz and 1080p at 120Hz.
• HDMI 2.0: Supports up to 4K resolution at 60Hz and 1080p at 240Hz.
• HDMI 2.1: Supports up to 8K resolution at 60Hz and 4K resolution at 120Hz.

Cable Length and Signal Integrity

• HDMI Cables: Typically support lengths up to 10 meters without significant signal degradation. Longer cables may require signal boosters or active HDMI cables.
• HDMI Adapters: Can affect signal integrity, especially when used with long HDMI cables.

Features and Enhancements

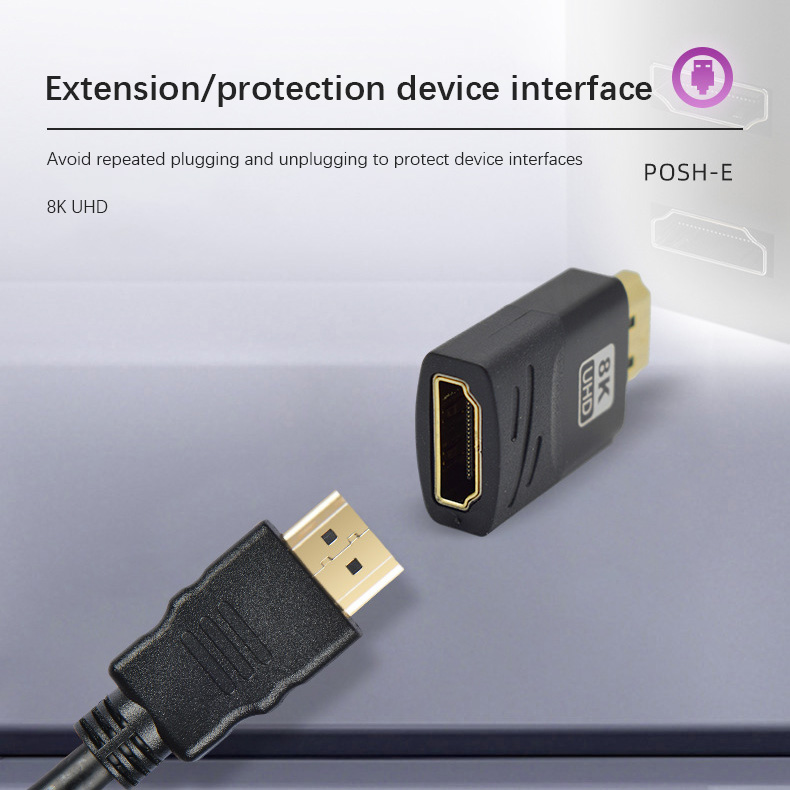

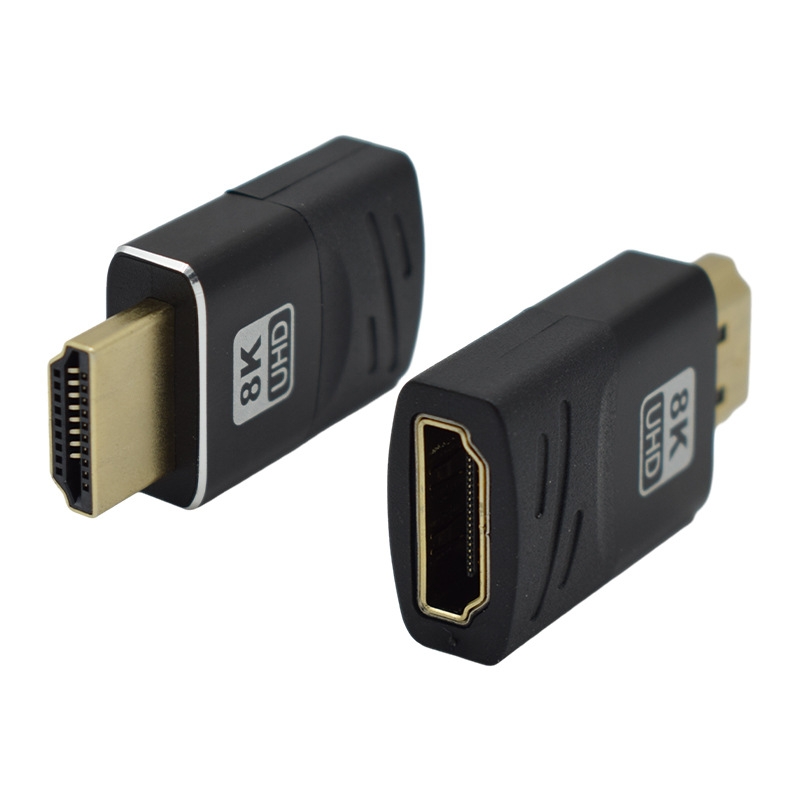

HDMI to HDMI Adapter

• Versatility: HDMI adapters provide versatility by allowing connections between devices with different HDMI port configurations.
• Signal Conversion: Some HDMI adapters can convert signals between HDMI and other interfaces like DVI or DisplayPort.
• Compact Design: HDMI adapters are typically compact and easy to use, making them convenient for various applications.

HDMI to HDMI Adapter

• High Bandwidth: Support high bandwidth, ensuring compatibility with the latest HDMI standards.
• Audio and Video Transmission: Transmit both audio and video signals, reducing the need for additional cables.

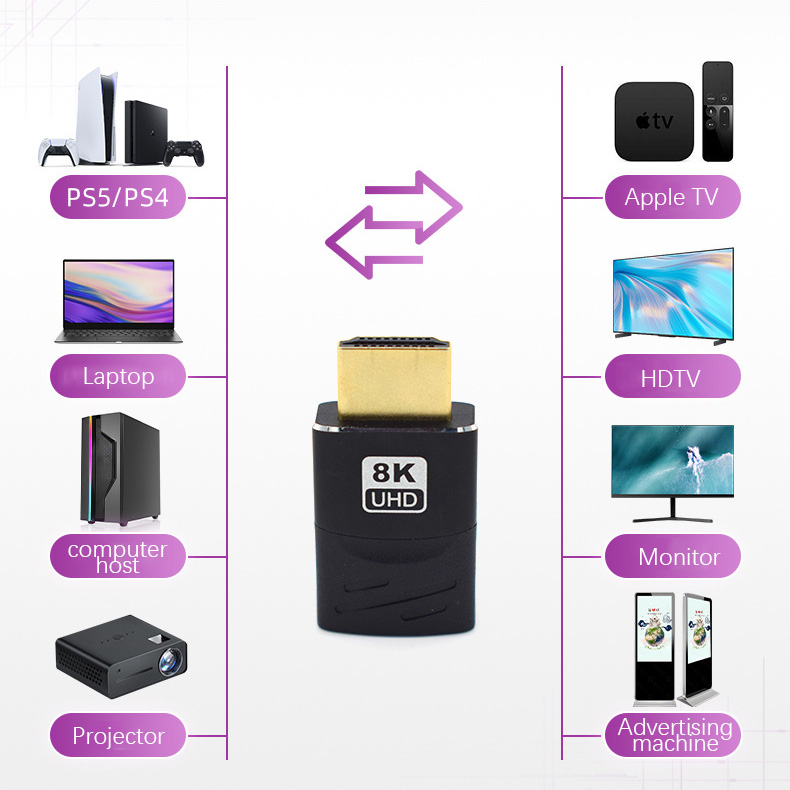

• Compatibility: Compatible with a wide range of HDMI-enabled devices, including TVs, monitors, gaming consoles, and laptops.

Use Cases and Applications

Home Entertainment

• Connecting Devices: HDMI to HDMI adapters are commonly used to connect home entertainment devices like TVs, Blu-ray players, and soundbars.
• Extending Cables: Useful for extending the length of HDMI cables in home theater setups.

Professional Use

• Presentations: HDMI to HDMI adapters are used in professional environments for connecting laptops to projectors and monitors.
• Video Conferencing: Essential for video conferencing setups, ensuring compatibility between different devices.

Gaming

• High Refresh Rates: HDMI to HDMI adapters support high refresh rates, making them ideal for gaming setups.
• Multiple Monitors: Useful for connecting multiple monitors in gaming setups, providing an immersive experience.

Comparative Analysis

Performance

• HDMI 2.1: Offers the highest performance with support for 8K resolution and 48 Gbps bandwidth.
• HDMI 2.0: Provides a good balance between performance and compatibility, supporting 4K resolution at 60Hz.
• HDMI 1.4: Suitable for basic applications, supporting 4K resolution at 30Hz.

Compatibility

• HDMI to HDMI Adapters: Widely compatible with various HDMI-enabled devices, making them versatile and easy to use.
• Signal Conversion Adapters: Offer additional compatibility by converting signals between different interfaces.

Future Prospects

• HDMI 2.1: Expected to become the standard for high-definition audio and video transmission, with ongoing improvements in bandwidth and resolution support.
• HDMI Adapters: Likely to continue evolving, with new versions supporting higher resolutions and refresh rates.

Challenges and Limitations

Signal Integrity

• Cable Length: Signal integrity can be affected by the length of HDMI cables, especially when using adapters.
• Quality of Adapters: The quality of HDMI adapters can vary, affecting the overall performance and signal integrity.

Compatibility Issues

• Older Devices: Some older devices may not fully support the latest HDMI standards, leading to compatibility issues.
• Adapter Quality: Low-quality adapters may not provide the same level of performance and compatibility as higher-quality ones.
